Prometheus监控对象metrics显示”context deadline exceeded”¶

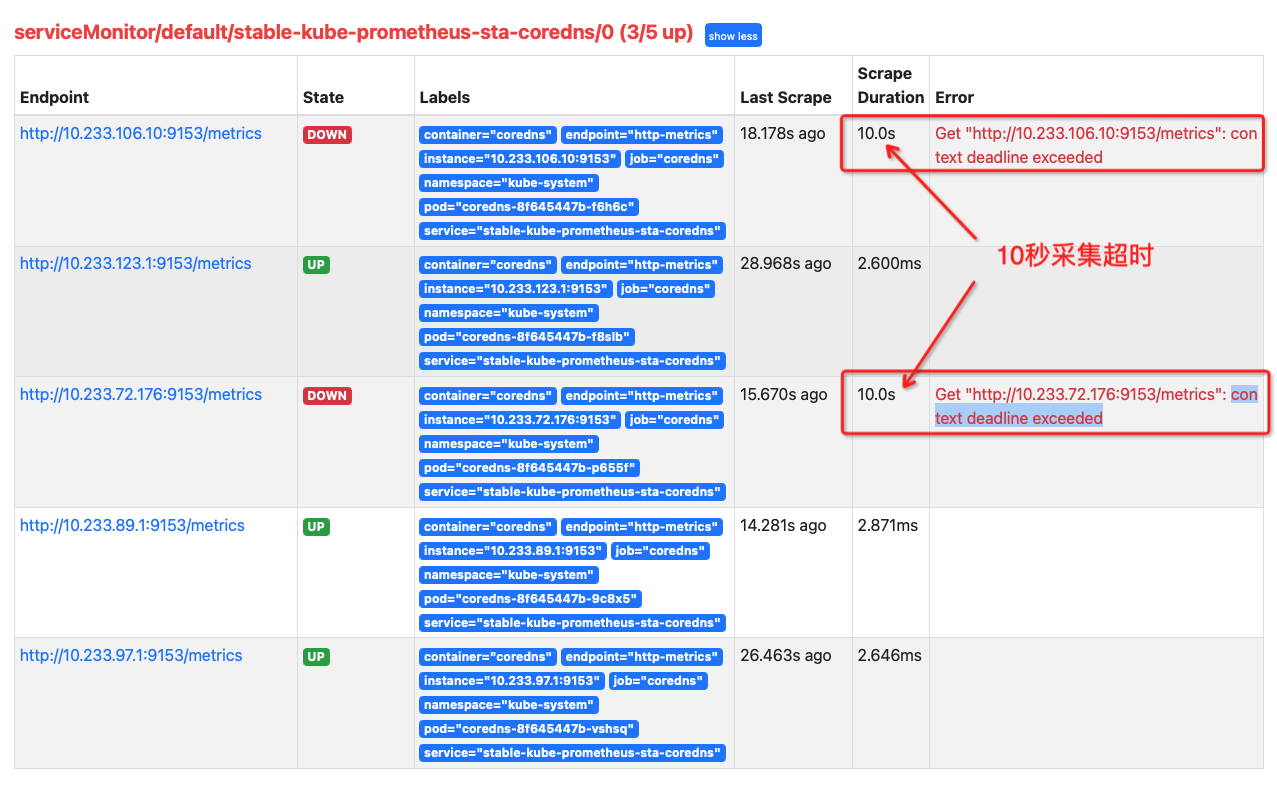

我在排查 Prometheus访问监控对象metrics连接被拒绝 发现有的被监控对象并不是 connection refused ，而是显示错误 context deadline exceeded ，例如 CoreDNS :
可以看到这2个 CoreDNS 数据采集超过10秒导致报错
DCGM-Exporter “context deadline exceeded”¶
在完成 kube-prometheus-stack 持久化卷 调整( 更新Kubernetes集群的Prometheus配置 )，我发现集群中 dcgm-exporter 采集不正常。同样的配置在一个集群正常，另外一个集群则出现:
1.0s
Get "http://10.233.101.2:9400/metrics": context deadline exceeded
这里由于是局域网内部，默认配置了 Scrape Duration 是 1.0s ，超过1秒就认为采集失败。
为什么采集失败呢？
通过 kubectl exec 登陆到容器内部进行检查，我发现在 prometheus 容器内部，确实无法访问 dcgm-exporter 容器的 9400 端口。并且 exec 进入 dcgm-exporter 容器，发现一个非常异常的情况，操作没有几下，就被断开容器网络，此时终端显示输出:
command terminated with exit code 137
这个 exit code 137 表示容器被kubernetes杀掉，通常是容器消耗了过多的内存资源。不过，我检查容器状态，发现是 health 检查没有通过:
kubectl describe pods dcgm-exporter-1681353332-l4z8w -n nvidia-gpu
显示错误信息:
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 32m default-scheduler Successfully assigned nvidia-gpu/dcgm-exporter-1681353332-l4z8w to i-2ze6nk43mbc7xxpcb0ac
Normal Pulled 31m (x2 over 32m) kubelet Container image "nvcr.io/nvidia/k8s/dcgm-exporter:2.4.6-2.6.10-ubuntu20.04" already present on machine
Normal Created 31m (x2 over 32m) kubelet Created container exporter
Normal Started 31m (x2 over 32m) kubelet Started container exporter
Warning Unhealthy 31m kubelet Readiness probe failed: Get http://10.233.91.12:9400/health: dial tcp 10.233.91.12:9400: connect: connection refused
Warning Unhealthy 30m (x2 over 31m) kubelet Readiness probe failed: HTTP probe failed with statuscode: 503
Normal Killing 30m (x2 over 31m) kubelet Container exporter failed liveness probe, will be restarted
Warning MissingClusterDNS 7m46s (x79 over 32m) kubelet pod: "dcgm-exporter-1681353332-l4z8w_nvidia-gpu(b99740e8-7645-4c49-90ef-52ae67bc5be6)". kubelet does not have ClusterDNS IP configured and cannot create Pod using "ClusterFirst" policy. Falling back to "Default" policy.
Warning Unhealthy 119s (x91 over 31m) kubelet Liveness probe failed: HTTP probe failed with statuscode: 503
我回想了以下 更新Kubernetes集群的Prometheus配置 调整内容，我只调整了 kube-prometheus-stack 节点选择 和 kube-prometheus-stack 持久化卷 ，不过，这个 kube-prometheus-stack.values 配置是从正常集群复制过来处理的，虽然两个集群几乎一样。
再检查了一下 dcgm-exporter 容器，发现也不是所有容器都有这个重启问题:
kubectl get pods -A -o wide | grep dcgm
输出显示:
nvidia-gpu dcgm-exporter-1681353332-55rnx 1/1 Running 0 69m 10.233.112.2 i-2ze6nk43mbc7xxpcb0aq <none> <none>
nvidia-gpu dcgm-exporter-1681353332-5p42m 1/1 Running 0 69m 10.233.108.2 i-2ze6nk43mbc7xxpcb0ap <none> <none>
nvidia-gpu dcgm-exporter-1681353332-5tf58 1/1 Running 0 69m 10.233.75.2 i-2ze6nk43mbc7xxpcb0b4 <none> <none>
nvidia-gpu dcgm-exporter-1681353332-64gf2 0/1 CrashLoopBackOff 18 69m 10.233.106.13 control002 <none> <none>
nvidia-gpu dcgm-exporter-1681353332-6hc2b 1/1 Running 0 69m 10.233.113.3 i-2ze6nk43mbc7xxpcb0ah <none> <none>
nvidia-gpu dcgm-exporter-1681353332-72r6s 0/1 CrashLoopBackOff 18 69m 10.233.72.180 control001 <none> <none>
nvidia-gpu dcgm-exporter-1681353332-7wljq 1/1 Running 0 69m 10.233.123.3 i-2ze6nk43mbc7xxpcb0af <none> <none>
nvidia-gpu dcgm-exporter-1681353332-8v5f7 1/1 Running 0 69m 10.233.64.2 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
...
nvidia-gpu dcgm-exporter-1681353332-l4z8w 0/1 Running 69 69m 10.233.91.12 i-2ze6nk43mbc7xxpcb0ac <none> <none>
...
nvidia-gpu dcgm-exporter-1681353332-q6b72 1/1 Running 0 69m 10.233.73.3 i-2ze6nk43mbc7xxpcb0b9 <none> <none>
nvidia-gpu dcgm-exporter-1681353332-qd458 0/1 Running 72 69m 10.233.93.5 i-2ze6nk43mbc7xxpcb0ad <none> <none>
nvidia-gpu dcgm-exporter-1681353332-qwzfr 0/1 ContainerCreating 0 69m <none> gpu003 <none> <none>
可以看到有些 gpu-exporter 运行并没有出现重启
那么，来看看 dcgm-exporter-1681353332-8v5f7 (10.233.64.2) 位于 i-2ze6nk43mbc7xxpcb0b2 物理主机上。登陆 dcgm-exporter-1681353332-8v5f7 检查，发现本地检查 metrics 完全正常，但是 prometheus 通过网络无法访问
那么是不是 i-2ze6nk43mbc7xxpcb0b2 服务器上其他容器也有问题呢？检查所有pods:
# kubectl get pods -o wide -A | grep i-2ze6nk43mbc7xxpcb0b2
default nettool-node-mcpb5 1/1 Running 0 17d 10.233.72.154 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
default stable-prometheus-node-exporter-mq4gr 1/1 Running 0 14d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
kube-system calico-node-f7drp 1/1 Running 0 18d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
kube-system kube-proxy-xm2kk 1/1 Running 0 12d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
kube-system nodelocaldns-62qvs 1/1 Running 0 18d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
kubemaker codegpt-6b-tiny-294761-02041681267969-ptjob-worker-11 1/1 Running 0 27h 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
nvidia-gpu dcgm-exporter-1681353332-44gfw 1/1 Running 0 130m 10.233.64.3 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
nvidia-gpu nvidia-device-plugin-phy-fml6h 1/1 Running 0 18d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>
nvidia-gpu rdma-device-plugin-qsjs2 1/1 Running 0 18d 172.21.44.229 i-2ze6nk43mbc7xxpcb0b2 <none> <none>

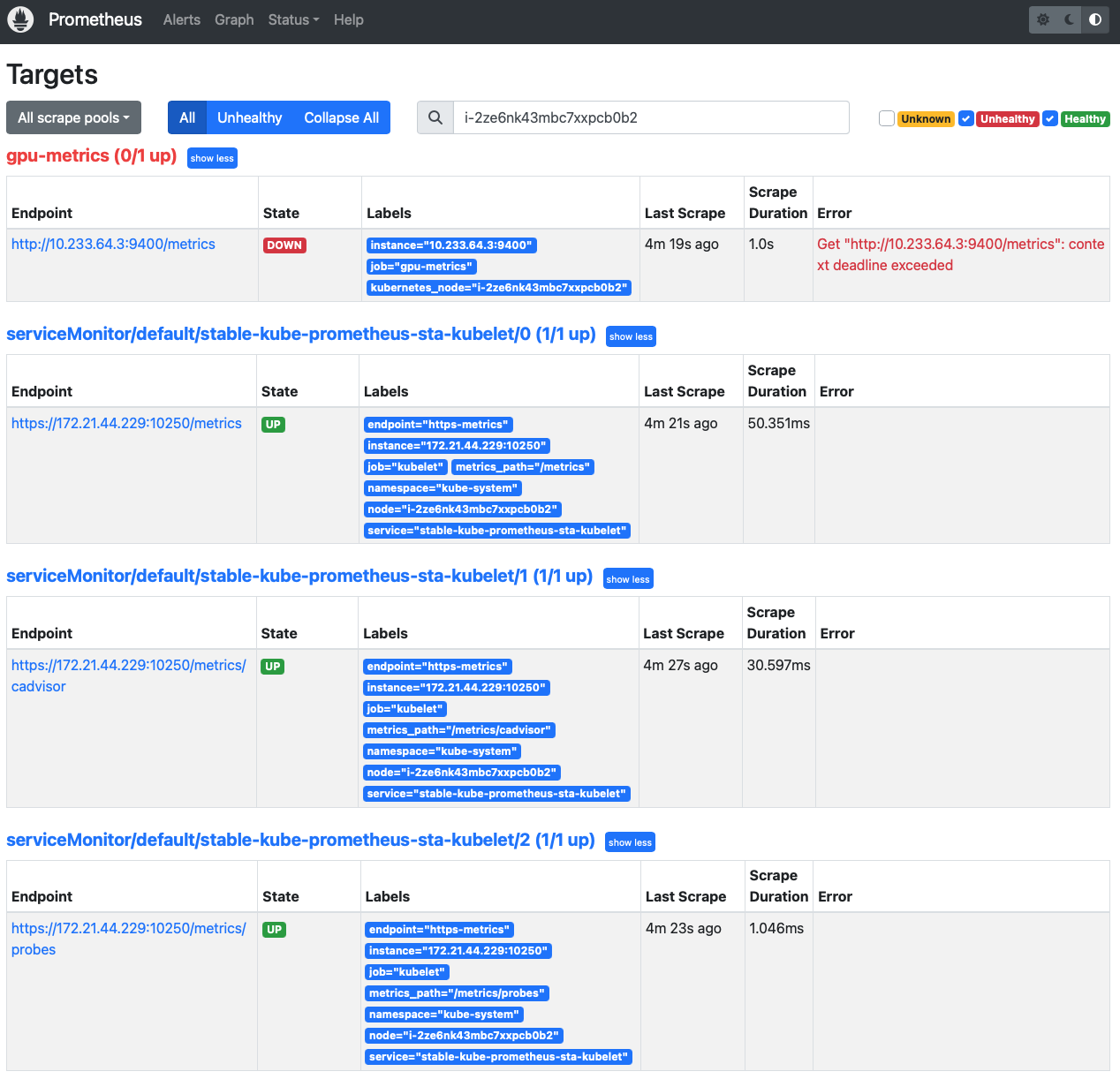

从 prometheus Targets 页面来年，只有 dcgm-exporter 这个pod的 9400 端口无法采集:
